MTI  |  SKU: KSL-1200X-M-AD

1200 Max Automated Box Furnace ( 30x30x30 CM, 27 L) - KSL-1200X-M-AD

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

1200 Max Automated Box Furnace ( 30x30x30 CM, 27 L) - KSL-1200X-M-AD

MTI

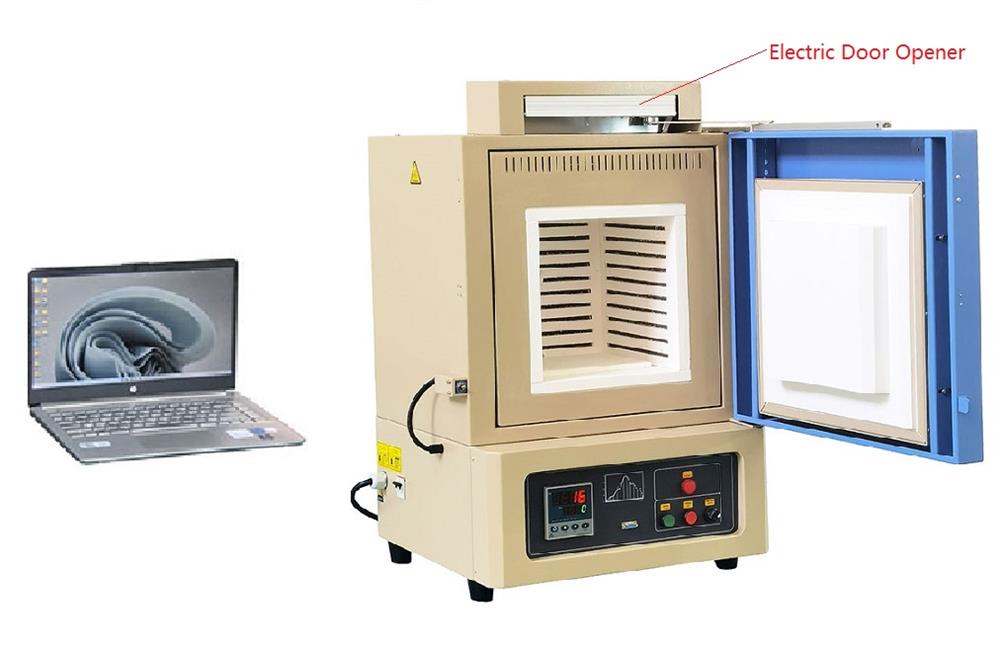

  The KSL-1200X-M-AD is an automated box furnace with a maximum temperature of 1200, The furnace is operated by a PC and enables one-key automated execution of sintering processes via computer control, including closing the door, raising the temperature, dwelling, and cooling, and opening the door.   It can be integrated with a robotic system to facilitate automatic sample loading, unloading, and retrieval. A single PC can control multiple units at the same time.

SPECIFICATIONS:

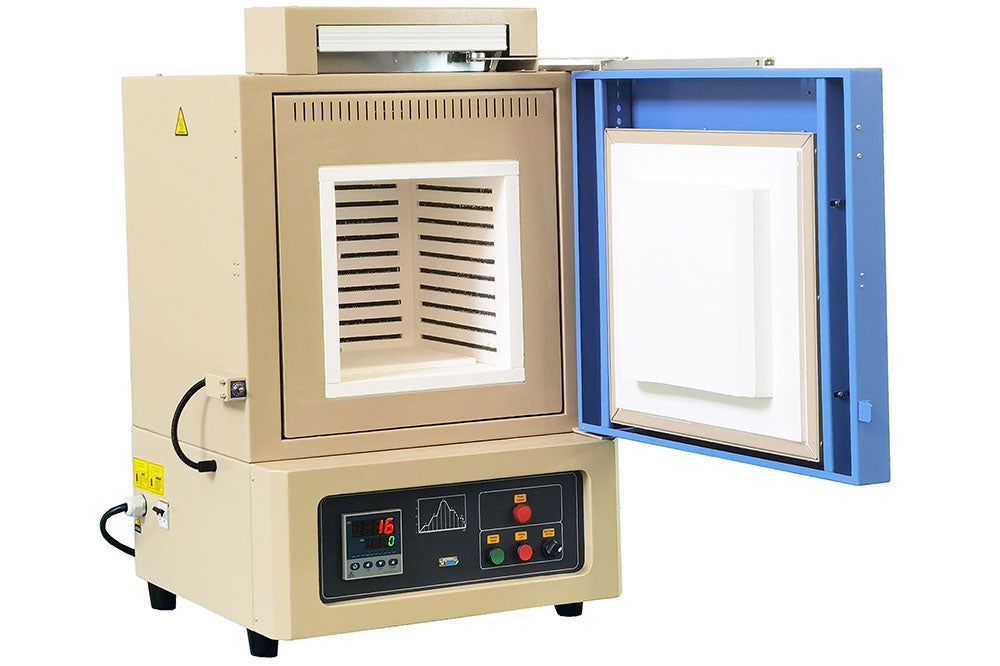

Furnace Structure
  • Dual-layer shell structure
  • High-purity alumina fiber material furnace chamber
  • One laptop computer is included for automatic operation
Power
  • Voltage: AC220V+/- 10% ,  50/60 HZ
  • Power: 7.5KW
  • 3-meter power cable is included  without a plug
Heating Chamber
  • 300 x300 x300 ( mm),    ( ~ 12x12x12")
  • 27 Liter Capacity
  • Heating rate: ?10/min
  • Thermal couple: K type
  • Uniform zone: 150x150x150 mm in center within +/- 5oC

Working Temp.
  • Max. 1200oC < 60 minutes
  • Continuous Working Temperature 1100° C
Temperature Control


  • PID automatic temperature control system
  • Intelligent 30-stage programmable control
  • Temperature control accuracy: ±1. (optional European temperature control accuracy up to ±0.1)
PC operation
  • One PC and pre-installed software are included to achieve automatic operation, including closing the door, raising the temperature, dwelling, and cooling, and opening the door.

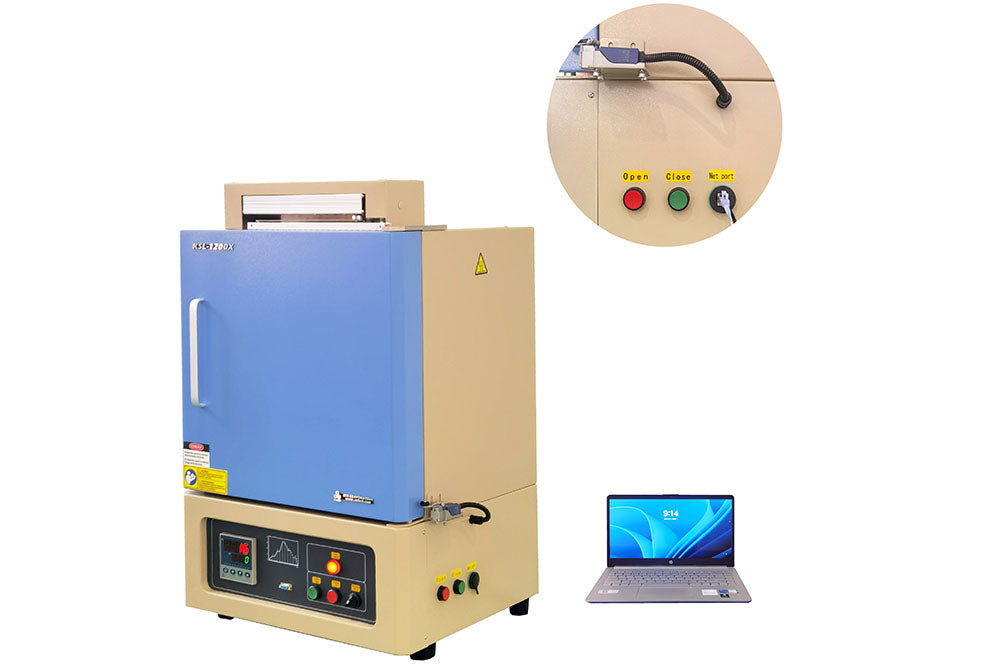

  • RJ45 communication interface on the side panel, providing MODBUS RTU communication protocol for instrument control and door switch

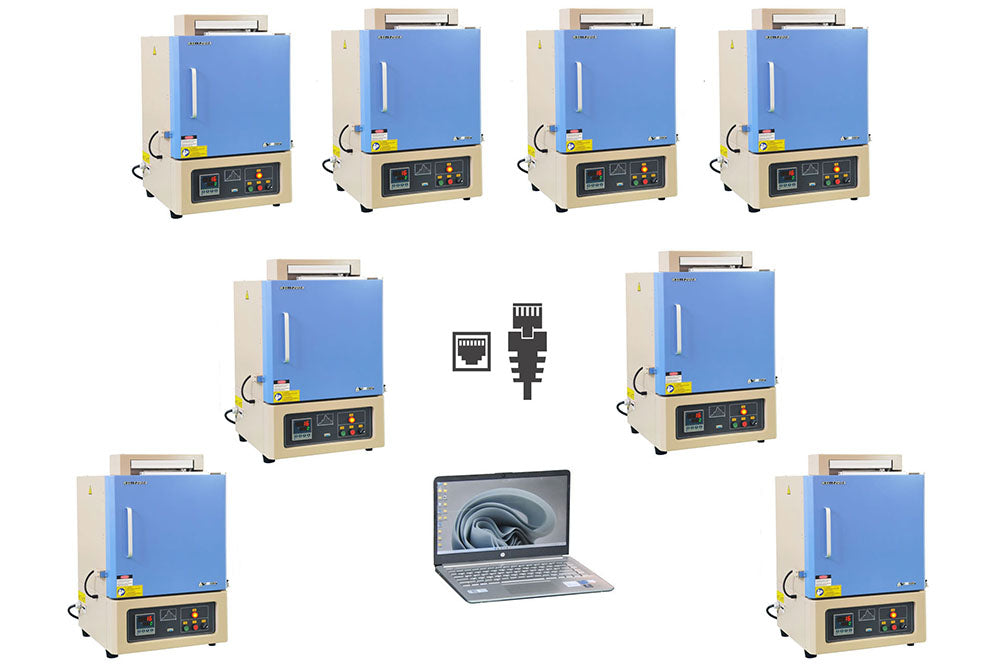

  • One computer can control multiple furnaces simultaneously up to 8 units
  • Equipped with ?6.35mm gas inlet (rear) and ?30mm outlet(top) ports which allow the introduction of inert gas into the chamber
Automation Collaborative Robot  for sample loading
(optional)
  • Full automation with sample loading is optional via the integration with a robot arm.


Dimension



Weight

 ~ 200 Kg

Demo Video

Compliance

 CE certified
NRTL or CSA certification is available upon request

Warranty

  • One year limited with lifetime support --- including all electronic and mechanical parts only.  Damaged parts caused by misuse: such as rusted parts from inadequate storage and broken parts by the user are not covered by the standard warranty.
  • We reserve the right to upgrade the furnace structure for better performance without notice
