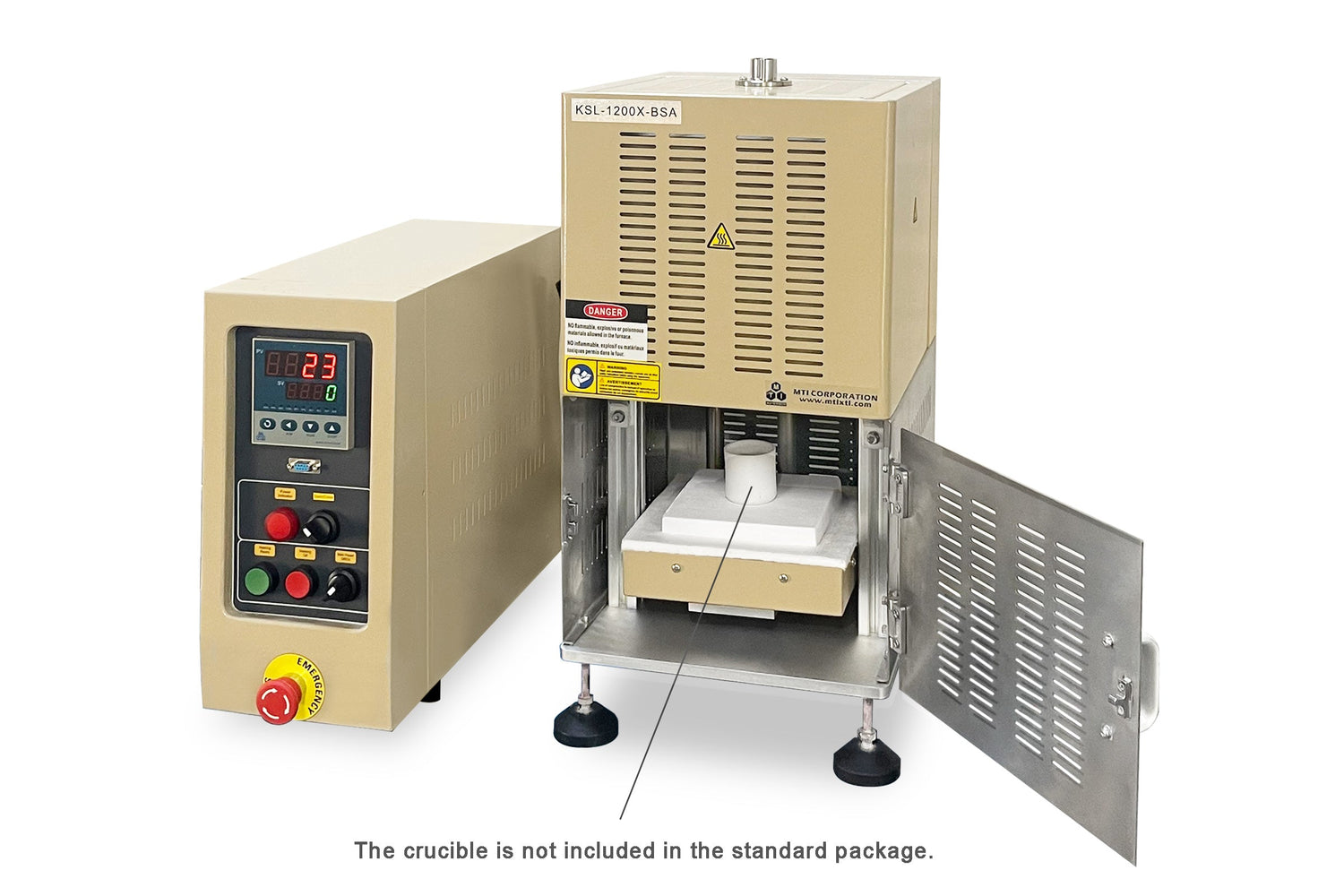

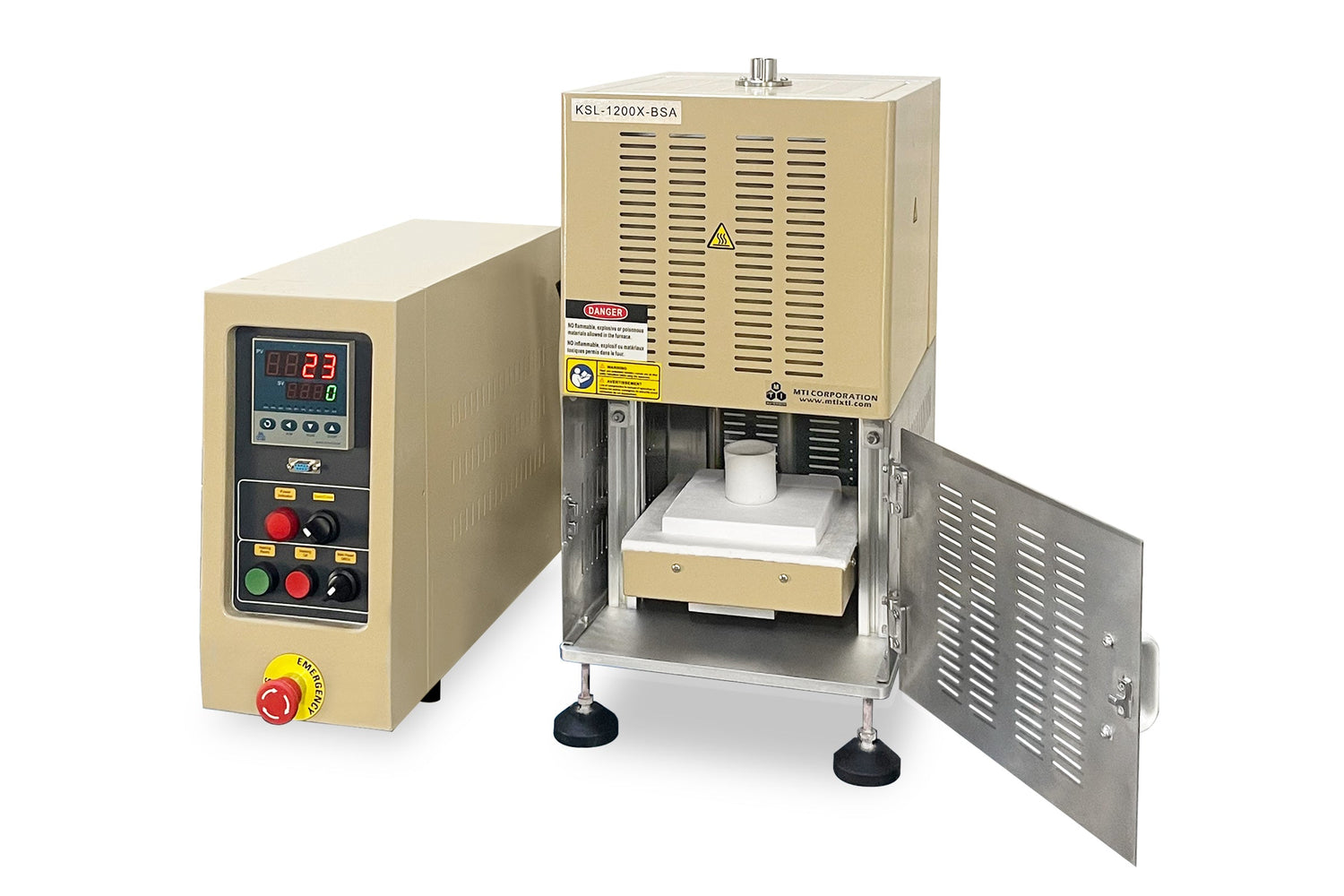

1200°C Compact Automatic Bottom Loading Furnace ( L6 x W6 x H7 ") with Computer Control - KSL-1200X-BSA

• 208 - 240 VAC, 50/60 Hz, single phase
• Max. Power: 2.5 kW
• Note? Power cable included but without a plug. Please install a plug on your own or click the link below to choose a plug according to your country or your lab requirement. (Pic.1?
• The KF 40 feedthrough of a power cord ?Pic. 2? for the glovebox (Pic.3) is available upon request at extra cost.

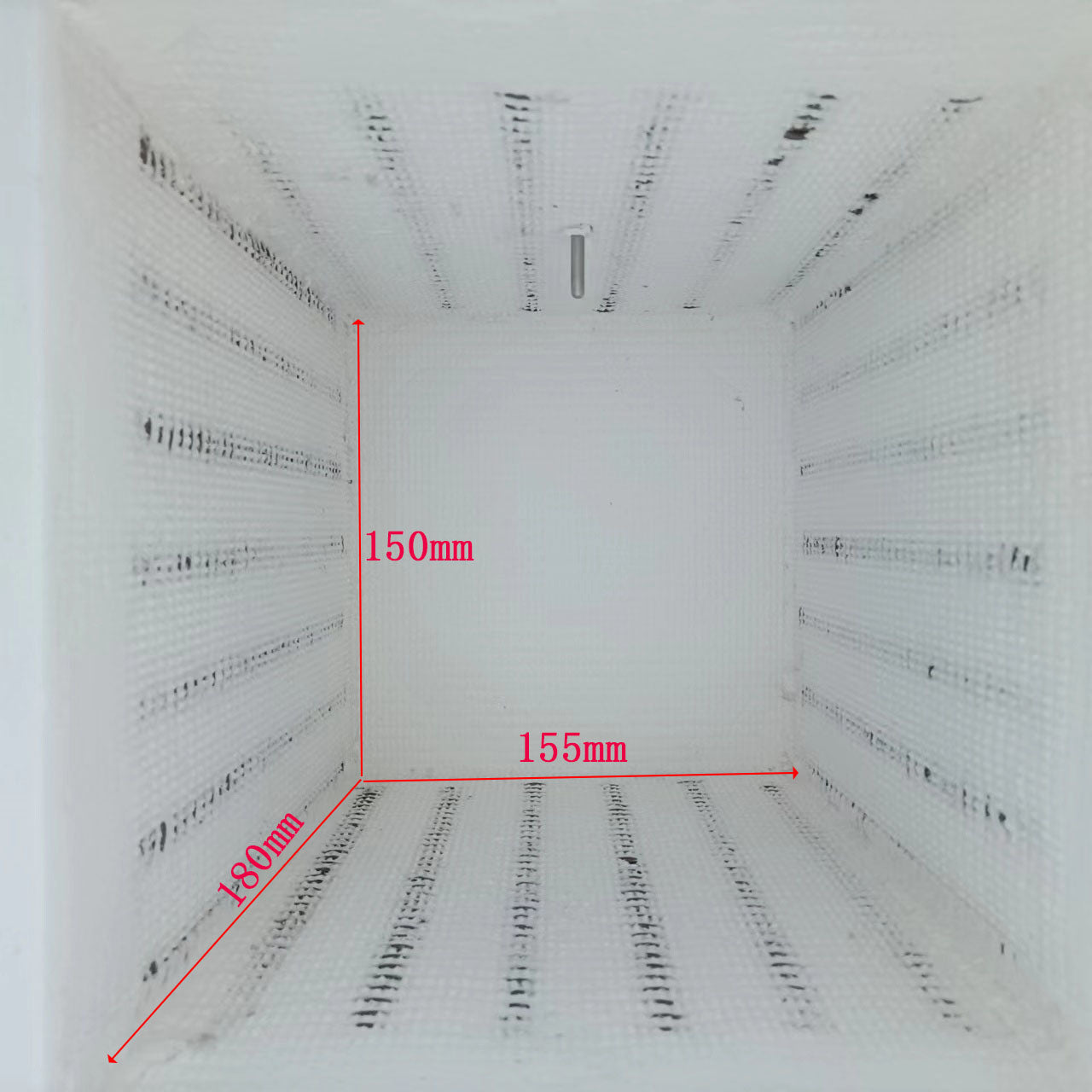

• 150mm(W) x 155mm(L) x 180mm(H), ( 6"x6"x7")
• 1300°C grade resistance heating coil
• Capacity? 4.2 Liter or 0.44 cubic ft
• Thermocouple: K-type

• 140mm Maximum

• 1100 °C, continuously
• 1200 °C, < 30 minutes
• Heating Rate: 10°C / minute

Touch Screen Control Panel

• Automatic data recording (up to 1 month)
• Temperature profile: heating, dwell time, and cooling up to 50 segments with accuracy +/- 1oC
• The bottom door will be closed after sample loading and be opened after finishing the heating program.
• RJ45 communication interface, can be connected to a PC or a wireless router

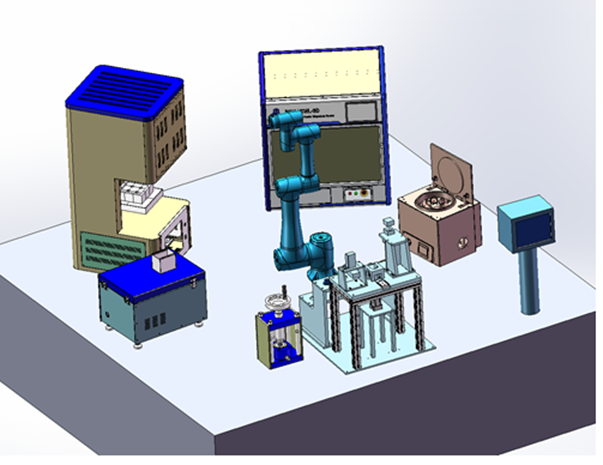

• Communication protocol is open to existing customers, allowing the connection of equipment with robots for unmanned operation.

Remote Computer Control
(Optional at Extra Cost)

• Computer operation software is ONLY sold with pre-installed and tested computer as a kit
• Can control multiple units at same time

Overall Dimension

• Control Unit: L 200 x W 480  x H 400  (mm)
  Furnace: L 300 x W 360  x H 610  (mm)
• Furnace Opening Clearance:140mm Maximum

Net Weight

• Furnace 25 KG
• Control Unit 15KG

Compliance

• NRTL or CSA certification is available upon request at extra cost.
