• The hybrid film applicator includes two parts, which are made of stainless steel

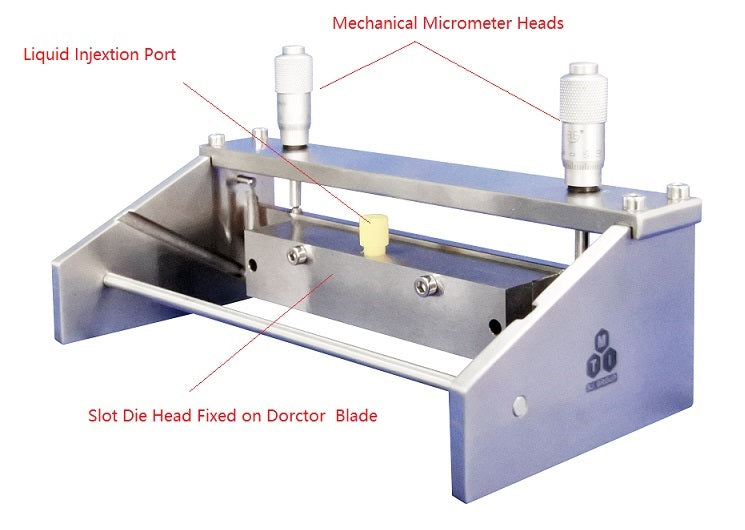

  • 250 mm width doctor blade with dual micrometers to adjust film thickness at the range at 0.01 mm - 5 mm (click Picture 1 to see details)

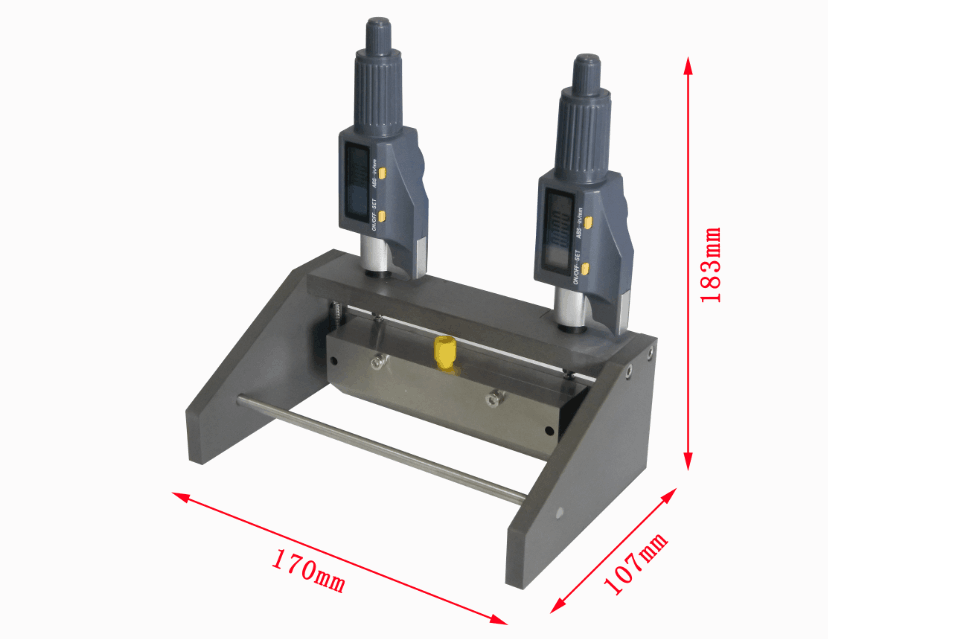

  • 200 mm width slot head, which can be fixed on the doctor blade to coat film thickness from 0.005mm - 0.02 mm (click Picture 2 to see details), which includes (see picture left column)
    • 2 pcs of 0.2 mm thickness Shim
    • 2 pcs of 0.3 mm thickness shim
    • 2 pcs of 0.4 mm thickness shim
    • 1 pcs PTFE tube (1/8"OD x 2.175 mm ID)
    • Join connectors to pump and slot die

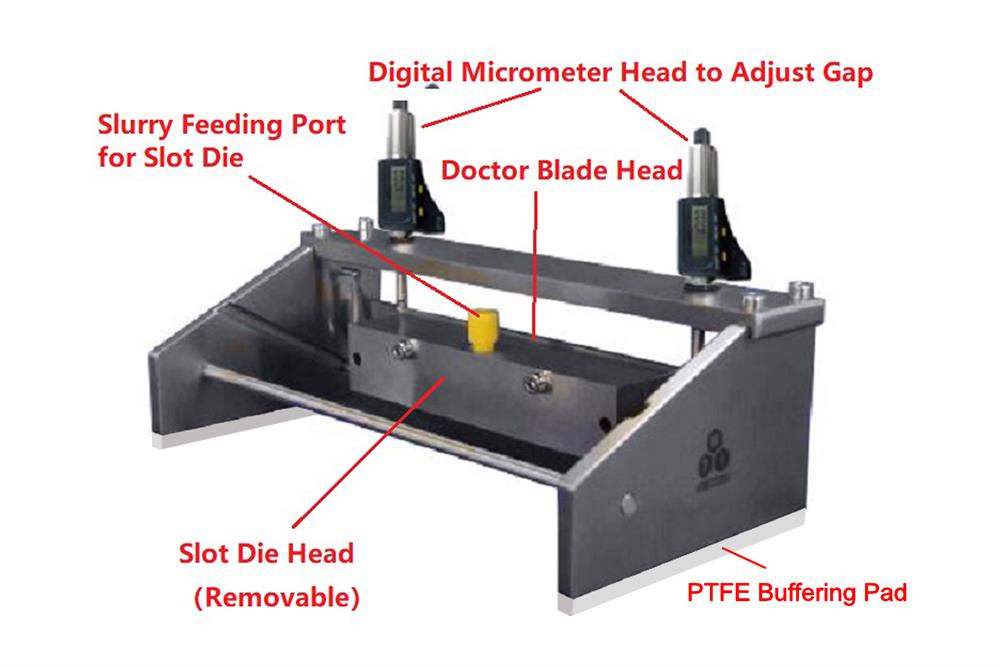

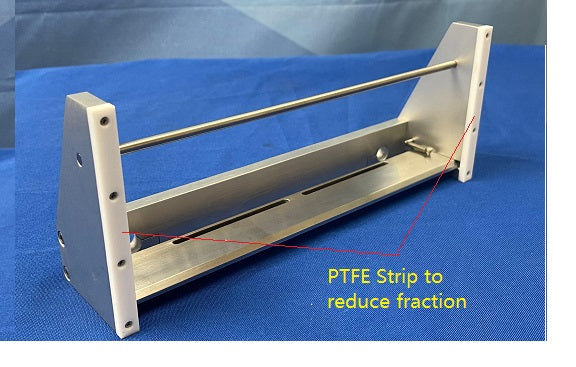

• The PTFE buffering pad installed on the bottom of the doctor blade to reduce friction (Pic. 3)

            Pic. 1 Pic. 2   Pic. 3

Micrometer Head

• Digital micrometer head accuracy: +/- 0,001 mm
• The micrometer heads are built-in doctor blade frame to adjust the gap between the slot die and the substrate

• The most suitable for the hybrid film applicator is MSK-AFA-II coater. because it has a lapped glass surface and < flatness of +/- 2 microns. Please click the Pic. 1 below right to order separately
• It fits with all brands' flat coating machines. Please click Pic. 2 below to see the slot die on the bottom heated coater
• Slot die is removable if using the doctor blade head for tape coating

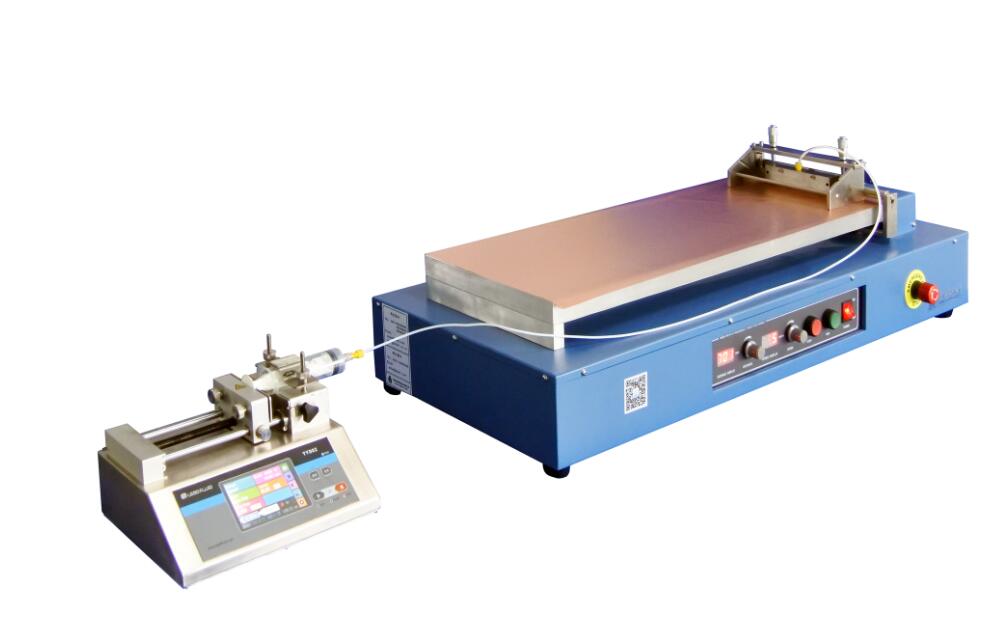

• For slot die coating, you may order a Syringe Pump as Pic. 2-3 below:
