MTI  |  SKU: IS1406

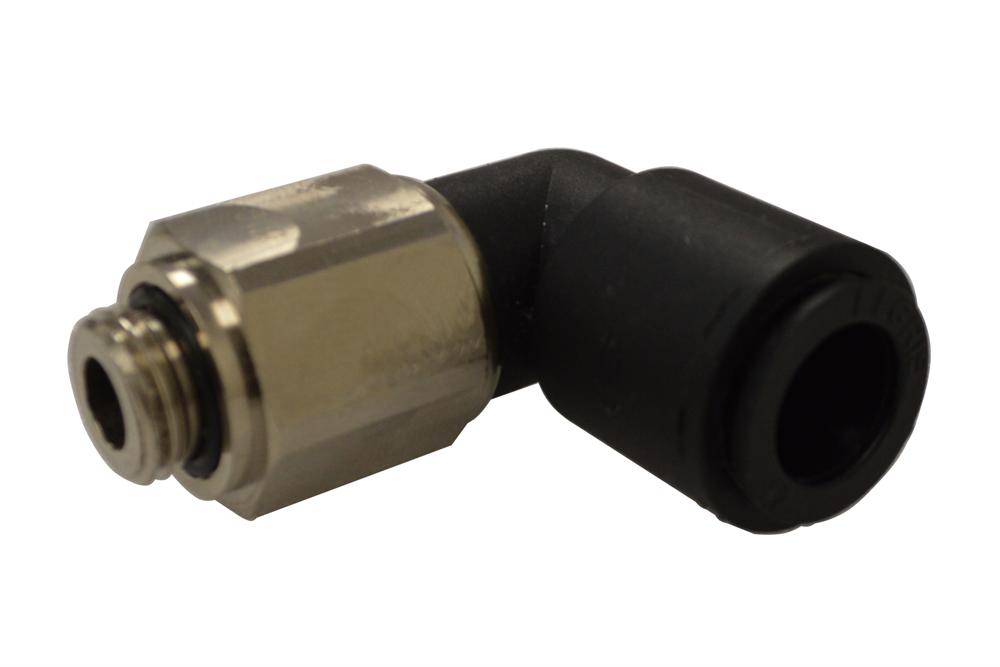

Swivel Elbow Fitting, 1/4" BSPP x 6mm or 12mm Tube (Upto 290 psi). EQ-IS-1406, EQ-IS-1412

€67,49

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Swivel Elbow Fitting, 1/4" BSPP x 6mm or 12mm Tube (Upto 290 psi). EQ-IS-1406, EQ-IS-1412

MTI

The connection of tubing at a 90° angle to a threaded port. Height dimensions are designed to pass over an elbow.

Specifications
  • Solid construction and aesthetic for a better connection
  • Precoated thread ensuring direct sealing
  • Full air flow
  • Individual unit quality control and dating in order to guarantee quality and traceability
Maximum working pressure      20 bar /2 MPa /290 psi
Working temperature      -20 to 80 °C
Vacuum capability       755 mm Hg
Body      TECHNICAL POLYMER
Sub-base      NICKEL PLATED BRASS
'O'-rings      NBR
Gripping ring      STAINLESS STEEL
Surface treatmene      PTFE
Application case for
4" Two Zone Rotary CVD Tube Furnace @1200C Max. - OTF-1200X-4-R-II-UL
