MTI  |  SKU: MTI-FLANGE-BOLT

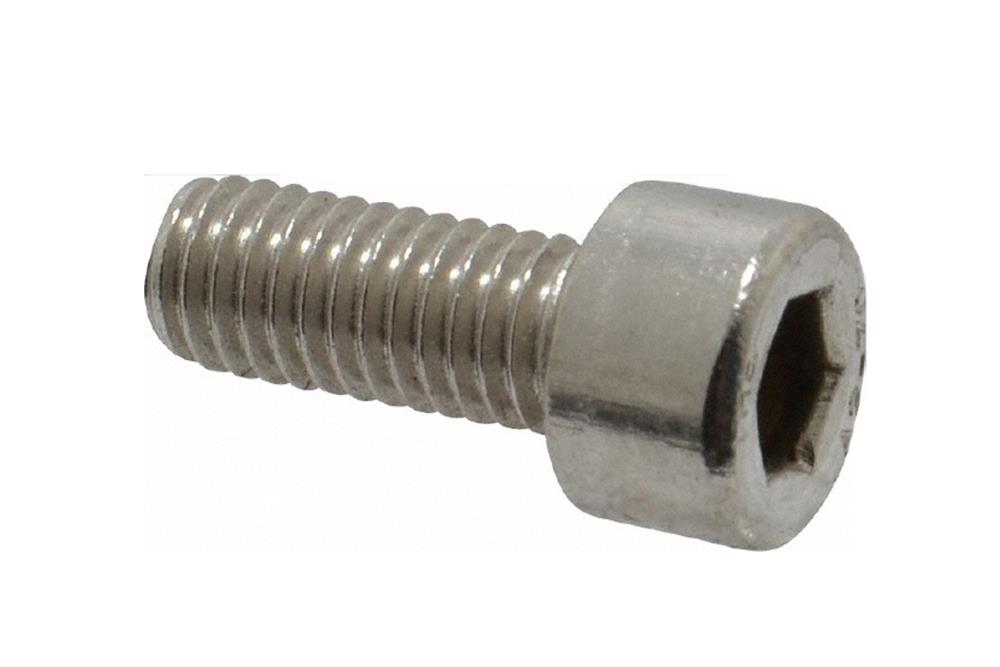

SS Metric socket cap for MTI standard flange, 6mm x 1.0mm x 20mm - MTI-FLANGE-BOLT

€1,28

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

SS Metric socket cap for MTI standard flange, 6mm x 1.0mm x 20mm - MTI-FLANGE-BOLT

MTI

Item SS Metric socket cap for MTI standard flange, 6mm x 1.0mm x 20mm, MTI-FLANGE-BOLT
For Stainless Steel Sealing Flange Assembly for 1"-11" Processing Tubes
Stainless Steel Sealing Flange Assembly for 1"-11" Processing Tubes
Dimension
Head style: Socket cap
Drive type: Allen
Material: Stainless steel
Grade: A-2
Thread direction: Right hand
Thread density: Coarse
Diameter: 6mm
Thread pitch: 1.0mm
Length: 20mm
Head diameter Max: 10.00mm
Head diameter Min: 9.74mm
Head height Max: 6.00mm
Head height Min: 5.85mm
Drive size: 5mm
