MTI | SKU:
HPRV6000

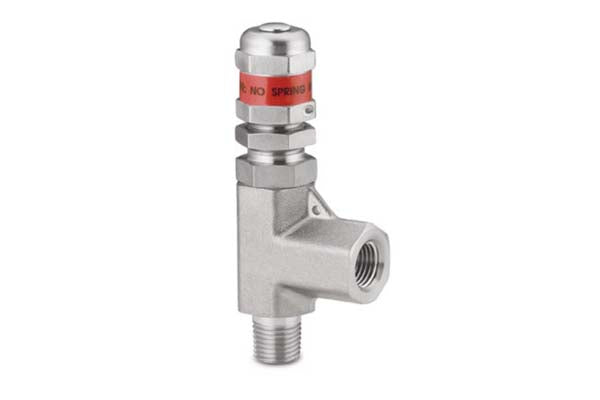

SS High Pressure Proportional Relief Valve(50-6000psig), 1/4 in. Male ISO x 1/4 in. Female ISO - HPRV6000
€0,00
Unit price
/
Unavailable
Couldn't load pickup availability
Delivery and Shipping to EU
Delivery and Shipping to EU
We will add in the quotation, the shipping, insurance, customs clearance costs.
SS High Pressure Proportional Relief Valve(50-6000psig), 1/4 in. Ma...
€0,00
Unit price
/
Unavailable
SS High Pressure Proportional Relief Valve(50-6000psig), 1/4 in. Male ISO x 1/4 in. Female ISO - HPRV6000
MTI
SPECIFICATION
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Male ISO Tapered Thread |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Female ISO Tapered Thread |
| Size | 1/8 in. |
| UNSPSC (SWG01) | 40141606 |
| Lubricant | Dow Corning Molykote 55 Grease |
| Max Temperature Pressure Rating | 250°F @ 4910 PSIG /121°C @ 338 BAR |
| Room Temperature Pressure Rating | 6000 PSIG @ 100°F /413 BAR @ 37°C |
| Seal Material | Fluorocarbon FKM |
| Service Class | High Pressure |
| Testing | No Optional Testing |
| eClass (4.1) | 37010901 |
| eClass (5.1.4) | 37019901 |
| eClass (6.0) | 37-01-09-01 |
| eClass (6.1) | 37-01-99-01 |
| UNSPSC (10.0) | 40141606 |
| UNSPSC (11.0501) | 40141606 |
| UNSPSC (13.0601) | 40141606 |
| UNSPSC (15.1) | 40141606 |
| UNSPSC (4.03) | 40141606 |
| Valve Material |
316 Stainless Steel |
| Materials of Construction |  |
| Dimension |
|
