MTI  |  SKU: GF20A

PPM Grade Dual Column Inert Gas Purifier (1.2"Dx10"Lx 2 ) - GF-20A

€1.212,24

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

PPM Grade Dual Column Inert Gas Purifier (1.2"Dx10"Lx 2 ) - GF-20A

MTI

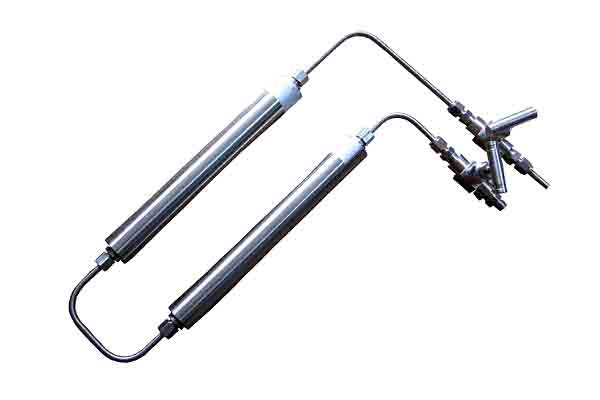

GF-20A Unit connects two Gas Purifier ( one for de-oxygen and another for de-humidity ) together by stainless steel pipe and two valves and ready to install to any MTI gas mixing system. It reduces gaseous impurities to sub-ppm  levels at room temperature operation. It removes H2O, O2, CO, CO2, H2 and NMCH's to <0.1 ppm from any  99.9% purity inert gas (Nitrogen, Argon, Helium, Krypton, Neon and Xenon) and H2O, O2and CO2 from Hydrogen.


SPECIFICATIONS

Features
  • Input gas purity requirement: < 1000 ppm  ( 99.99%)
  • Output : Removal of impurities to < 1 ppm   ( O2 ? 1ppm  H2O ? 1 ppm with cycling Please click here to convert humidity unit )
  • No heaters or power required
  • Room-temperature operation
  • 304L SS (<10 Ra EP) vessel
  • Easy to regenerate
  • High Flow - up to 10L/minute
  • Can purify inert gas upto 6 standard tanks
  • The filter is regenerate at 250 oC ( using 5N purity gas of 95%N2+5%H2 inside a drying oven), cusotmer can use MTI's  OTF-1200X-SNT-110 compact furnace to do the regeneration (chemcial reactivation)
  • Note: This small  Gas Purifier is note suitable for glove-box, but for MTI small tube furnace only
Maximum Pressure   250 psig (USA) / 9.9 kg/cm2
Operating Temperature  Room Temperature
Leak Rate     < 2 x 10-9 atm cc/sec He
Materials    304L SS
Fittings      1/4" BSPP Swagelok
Dimensions 1.2" OD x 10"L x 2
Operation Manual
Warranty One year limited with lifetime support
