Non-Contact Infrared Temperature Sensor and Controller up to 2200C for MTI Induction Heating System - EQ-IPTC-808

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Non-Contact Infrared Temperature Sensor and Controller up to 2200C for MTI Induction Heating System - EQ-IPTC-808

MTI

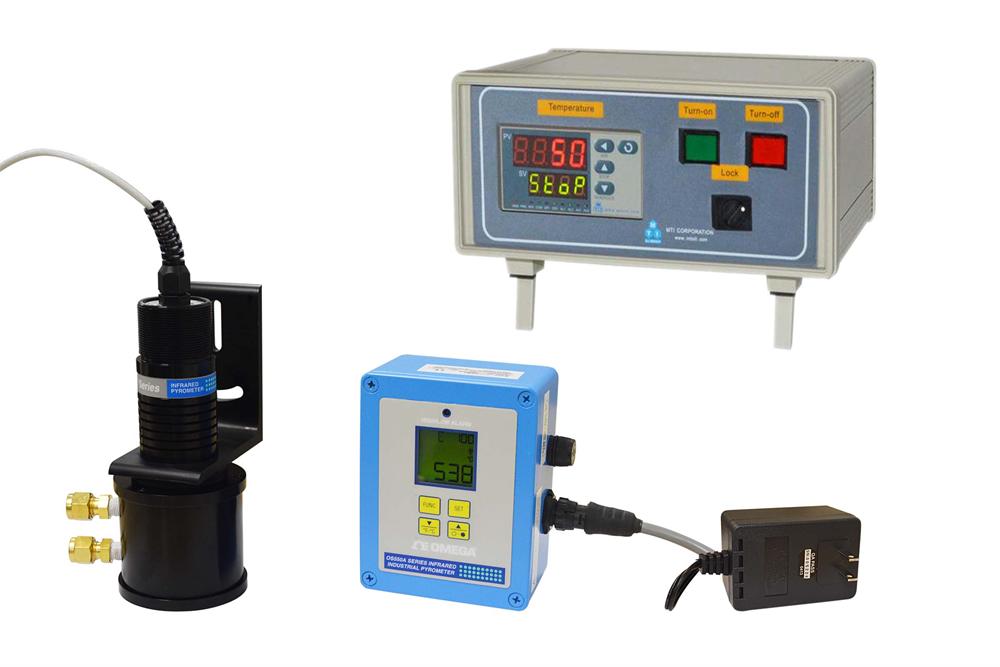

EQ-IPTC-808 is a solution for non-contact temperature measurement and control of MTI Induction Heaters. The PID control unit has built-in function modules that can work with most IGBTs to regulate the indiction power output. The infrared sensor and its transmitter offer a high-temperature range measurement upto 2200°C. Its analog feedback signals can be feed directly to the PID controller.

SPECIFICATIONS:

Power
  • 8 to 24 Vdc, 80 mA (for Infrared Pyrometer, 110-240V AV power adapter is included)
  • 208~240V AC (for Temperature Control Unit)
Temperature Range  538 to 2200°C (1000 to 3992°F)
Accuracy
  • ±1% rdg to 1093°C (2000°F);
  • ±2% rdg for higher temperatures;
  • 25°C ambient, 0.95 emissivity
Repeatability ±(1% rdg + 1 digit)
Spectral Response 2 to 2.5 microns
Emissivity 0.10 to 1.00 in 0.01 steps
Field of View 110 to 1
Response Time 100 ms, 0 to 63.5% of final value
Display Backlit LCD
Analog Output 1 mV/degree
Alarms
  •  High and low;
  •  Red LED and audible indicators;
  •  Two 100 mA current drives for external relays
PC Interface        RS232, 2-way
Sensor Head
  • 85°C (185°F) max temp for sensing head with water-cooled jacket
  • Support frame was included for easy mounting
  • 16L/min recirculating water flow is required for using >1000oC. Please click Pic below to choose a water chiller.
  • This sensor can be used through a high purity (IR transistat) quartz glass window
  •
Temperature Control Unit
  • PID automatic control
  • Receives analog output from infrared pyrometer
  • 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
  • Over temperature protection and alarm allows for operation without attendant(s).
  • +/- 1 ºC temperature accuracy.
  • Power Core (Cable Included), 6 Pin Connector to the SP-25AB/SP-15AB Induction heater, Pin Connector to the thermocouple (Cable Included)
  • Met certified
