MTI  |  SKU: K1500HE

SiC Heating Element for KSL-1500X Muffle Furnace - KSL-1500X-HEL

€229,93

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

SiC Heating Element for KSL-1500X Muffle Furnace - KSL-1500X-HEL

MTI

Specifications:

  • Materials: SiC
  • Working Temperature: max. 1500oC, Continuous working temperature 1400oC
  • Replaces Heating elements for  MTI KSL- 1500X Furnace only (each furnace has 4pcs such U type heating elements)

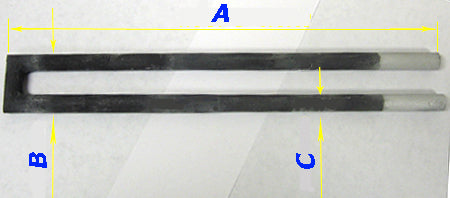

  • Dimension:A:300mm    B:30mm    C:12 mm
  • WARNING: The heating element is made of highly brittle material,  avoid applying stress during installation. No warranty will be provided for damage caused by improper installation. (Make sure the width of ceramic separator matches the heating element gap; a round file can be used to grate the ceramic separator)

Electric Properties of SiC Heating Elements

  • SiC heating element has a rather large specific resistance which changes with rising in temperature.  It has a resistance value of 600 ~ 1000 Ohm.mm 2 /m when the surface of its heat-generating part reaches 1050 oC while being heated in air.
  • The curve below illustrates the surface resistivity of SiC. Its values decline when the temperature is below 1000 oC; rise when above 1000 oC.

Surface resistivity vs. Temperature


Inspect your delivery:
Please check the package for damages before accepting delivery.
Should damages be found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.

No Warranty:
Kindly note this item is a consumable part, and not covered by warranty. Make sure to inspect for defect(s) thoroughly before use.
