MTI  |  SKU: CG6083

Graphite Crucible:80 mm OD x 60 mm ID x 83mm Height with 9.5mm pour hole for casting and Sealing Rod- EQ-GR6083-LD

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Graphite Crucible:80 mm OD x 60 mm ID x 83mm Height with 9.5mm pour hole for casting and Sealing Rod- EQ-GR6083-LD

MTI

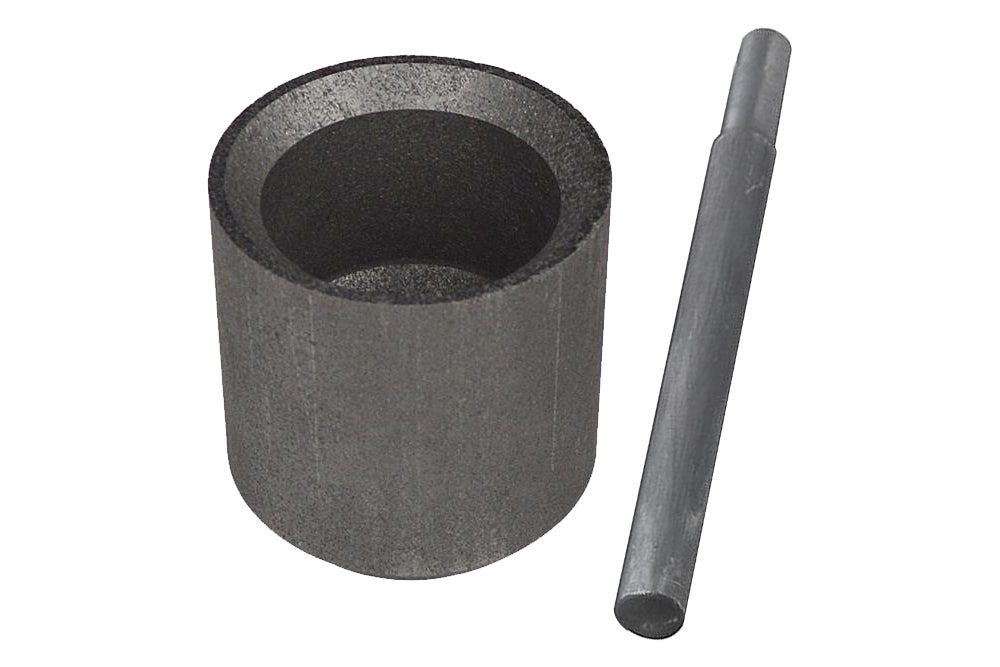

EQ-GR6083 is a High purity graphite crucible and sealing rod for induction heating and metal melting, Machined graphite crucible.

SPECIFICATIONS:

Part Number EQ-GR60-83
Structure
Outside Diameter 80mm  (3.14 ")
Inside Diameter 60mm  (2.36 ")
Height 83mm  ( 3.27")
Capacity ~200 mL
Dimension
Application Notes Graphite sealing rods serve to seal the crucible pour hole during the melt. This hollow-core graphite rod also holds and protects the thermocouple from molten metal and transfers heat quickly for faster, more accurate temperature readings.



PROPERTY  US VALUE METRIC VALUE
Particle Size 0.008 in 0.02032 cm
Density 0.063  lb/in 3 1.74 gr/cm 3
Flexural Strength 3200 psi 22.1 mpa
Compressive Strength 6200 psi 42.7 mpa
Resistivity 4.0 ohm/inx10 -4 4.0 ohm/inx10 -4
Thermal Conductivity 110 BTU/(h.ft 2 0F/ft) 190 W/(m 2 . K/m)
CTE 1.3 in/in 0F x 10 -6 2.4 Microns/m 0C
Temperature (Air) 750 0F 399 0C
Temperature (Inert) 5000 0F 2760 0C
Ash 0.1% 0.1%


Inspect your delivery:
Please check package for damages before accepting delivery.
Should damages found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.

No Warranty:
Kindly note this item is a consumable part, and not covered by warranty. Make sure to inspect for defect(s) thoroughly before use.
