MTI | SKU:
CG40102
Graphite Crucible: 51mm OD x 40mm ID x 102mm D. 127 mL - EQ-GR40102
€0,00
Unit price
/
Unavailable
Couldn't load pickup availability
Delivery and Shipping to EU
Delivery and Shipping to EU
We will add in the quotation, the shipping, insurance, customs clearance costs.
Graphite Crucible: 51mm OD x 40mm ID x 102mm D. 127 mL - EQ-GR40102
€0,00
Unit price
/
Unavailable
Graphite Crucible: 51mm OD x 40mm ID x 102mm D. 127 mL - EQ-GR40102
MTI

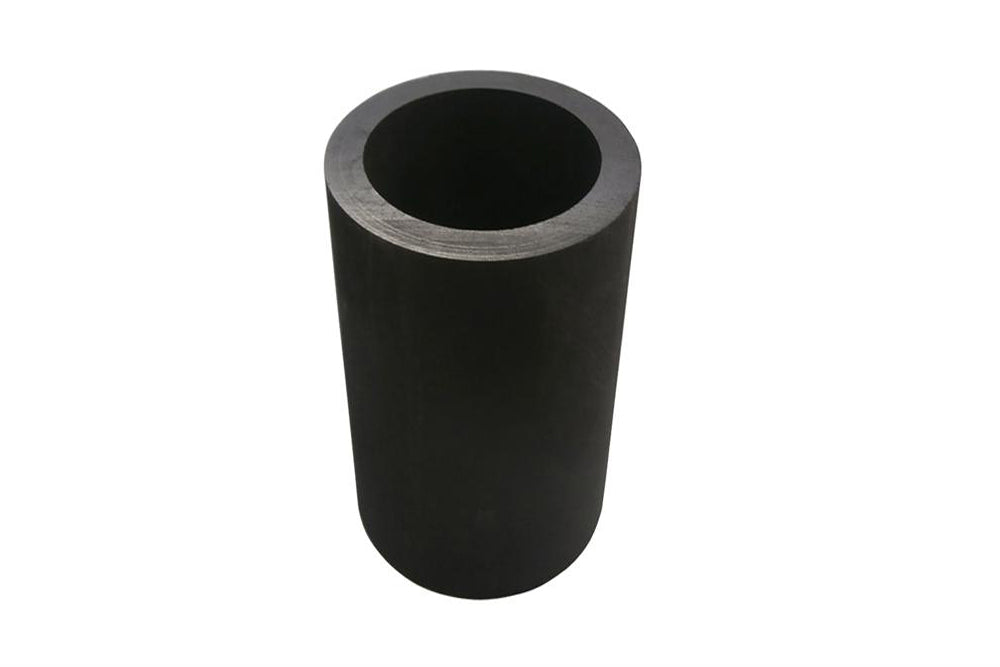

EQ-GR40102 is a High purity graphite crucible for induction heating and metal melting, Machined graphite crucible.

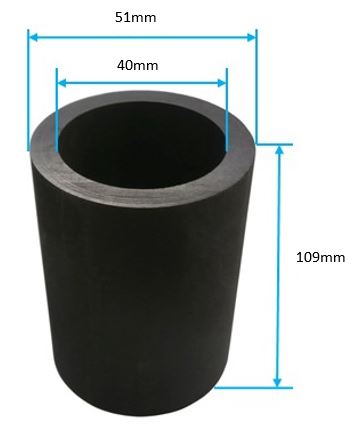

SPECIFICATIONS:
| Part Number | EQ-GR40102-LD |
| Outside Diameter | 51mm (2") |
| Inside Diameter | 40mm (1.57") |
| Depth | 102mm (4") |
| Height | 109mm (4.3") |
| Capacity | 127mL |
| PROPERTY | US VALUE | METRIC VALUE |
| Particle Size | 0.008 in | 0.02032 cm |
| Density | 0.063 lb/in 3 | 1.74 gr/cm 3 |
| Flexural Strength | 3200 psi | 22.1 mpa |
| Compressive Strength | 6200 psi | 42.7 mpa |
| Resistivity | 4.0 ohm/inx10 -4 | 4.0 ohm/inx10 -4 |
| Thermal Conductivity | 110 BTU/(h.ft 2 0F/ft) | 190 W/(m 2 . K/m) |
| CTE | 1.3 in/in 0F x 10 -6 | 2.4 Microns/m 0C |
| Temperature (Air) | 750 0F | 399 0C |
| Temperature (Inert) | 5000 0F | 2760 0C |
| Ash | 0.1% | 0.1% |
Inspect your delivery:
Please check package for damages before accepting delivery.
Should damages found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.
No Warranty:
Kindly note this item is a consumable part, and not covered by warranty. Make sure to inspect for defect(s) thoroughly before use.
