MTI  |  SKU: FM5000

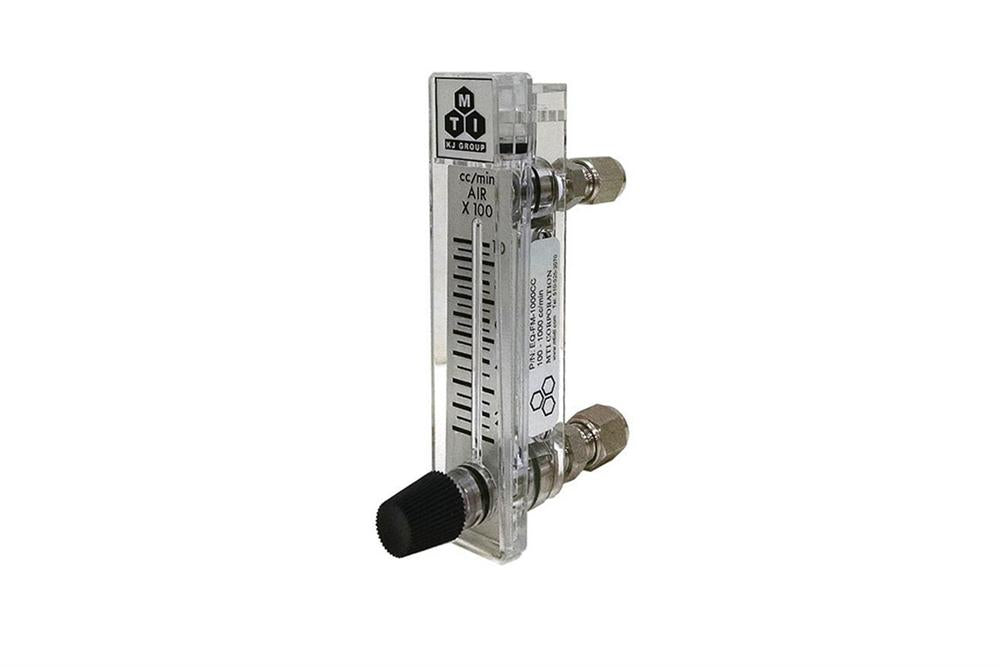

Compact Direct Read Flow Meter, Max 5000 cc/min. with two male fittings - EQ-FM-5000CC-LD

€218,37

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Compact Direct Read Flow Meter, Max 5000 cc/min. with two male fittings - EQ-FM-5000CC-LD

MTI

Molded of tough polycarbonate plastic. Used to Indicate & Manually control Air or Gas flow Max 5000 cc/min. The compact flowmeters are ideal for MTI oven EQ-DZF-6050 Series. Easy to read design - The direct reading scales eliminate troublesome conversions. The scales are brushed aluminum, coated with epoxy and the graduations are on both sides of the indicating tube. Special integral flow guides stabilize the float throughout the range to keep it from hunting or wandering in the bore. The float is highly visible against a white background. Construction assures accuracy - All flow meter bodies are injection molded of tough, clear, shatter-proof polycarbonate plastic around a precision tapered pin.The result is accurate and repeatable readings. The backbone into which pipe thread inserts are welded to absorb piping torque. Precision metering valves of stainless steel valves permit precise flow adjustments.  Accuracy is within 4% of full-scale reading

Meter Type Variable Area
Scale 2" Scale
Valve Stainless Steel Valve
Temperature Limit 103 F
Pressure Limit 100 PSI (Caution: Please alway control the pressure of air intake less than 100 psi)
Connection Size 8th inch
Accuracy 4%
Low Range Cubic Centimeters per Minute 500 CCM
High Range Cubic Centimeters per Minute 5000 CCM

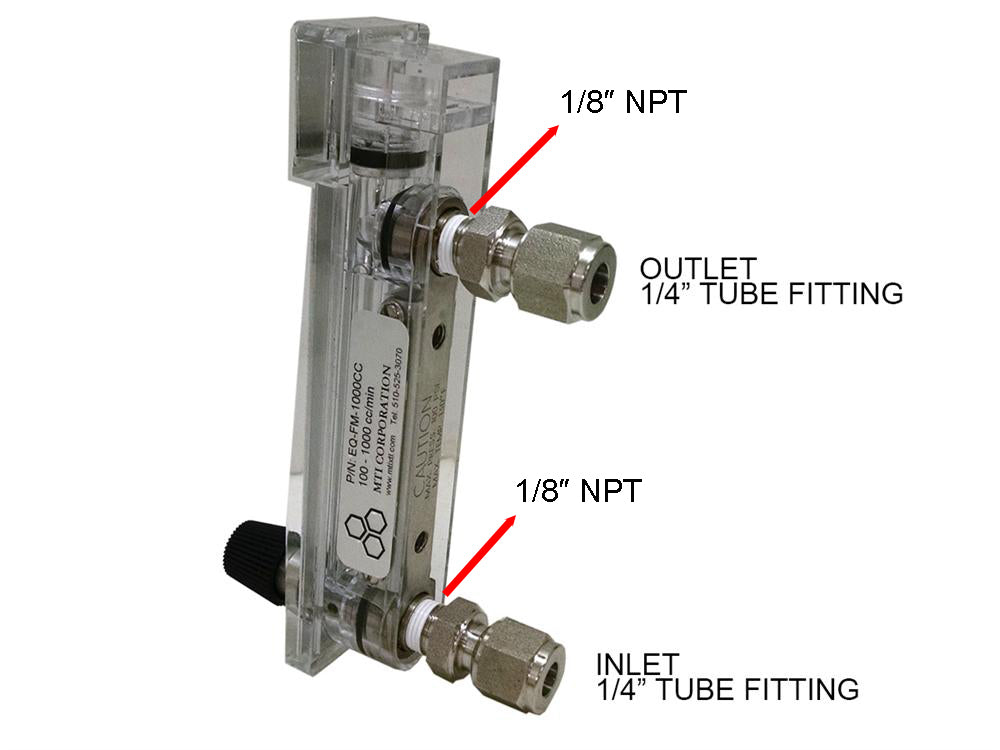

Please click the picture for the details of flow meter
