MTI  |  SKU: OFP24V

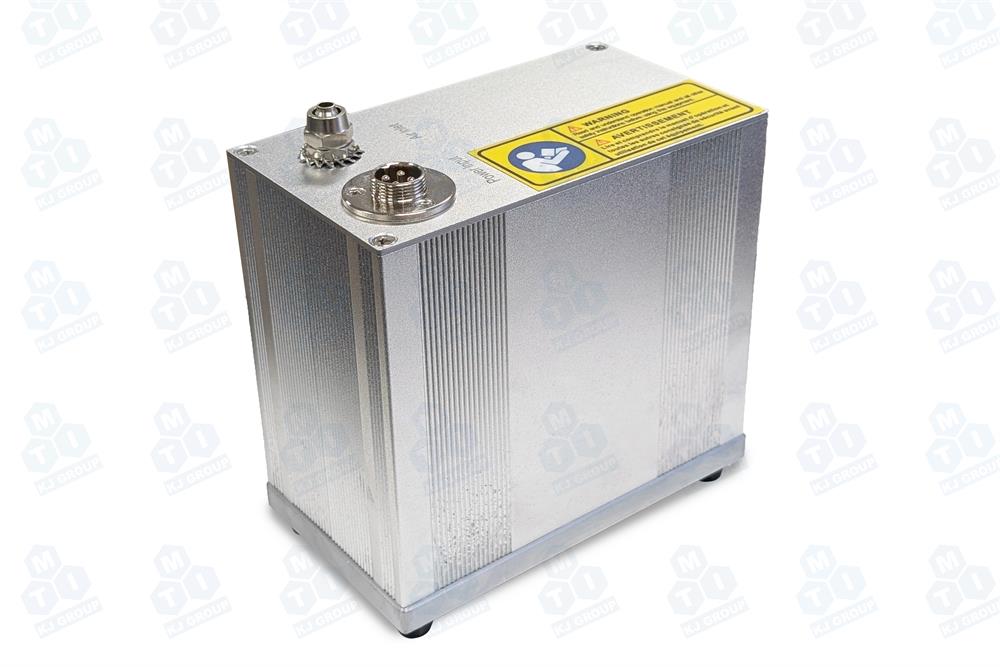

24V DC Oilless Vacuum Pump for MSK-AFA-HC100 - EQ-OFP-24V

€546,25

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

24V DC Oilless Vacuum Pump for MSK-AFA-HC100 - EQ-OFP-24V

MTI

Specifications

Features
  • Compact design and Low noise and vibration
  • For light evacuation application
  • Low voltage application for Ar glove box application.
  • Safe to use without NRTL certification.
Compatible Machine
  • This pump only works with MSK-AFA-HC100 as a bundle, it does not work as a stand-alone product.
Voltage
  • 24VDC input
  • Power 75W
  • Power input connector: 4-pin aviation connector
Port Connection 8mm O.D. fitting
Production Dimension 87 L x 147 D x 105 H (mm)
A total of 170 mm height is desirable for leaving some clearance for the tube and cable.
Warning

Attention: Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed to be all use for purposes deviating from those mentioned below, especially:

  • Pumping of corrosive or explosive media.
  • Pumping of condensing vapors.
  • Pumping of liquids.
  • Pumping of dust.
  • Operation with improper high levels of insulated heat input.
  • Operation in potentially explosive areas.
