UL/CSA Standard Compact Tape Casting Coater with Vacuum Chunk & Film Applicator - MSK-AFA-I-UL

€5.003,18

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

UL/CSA Standard Compact Tape Casting Coater with Vacuum Chunk & Film Applicator - MSK-AFA-I-UL

MTI

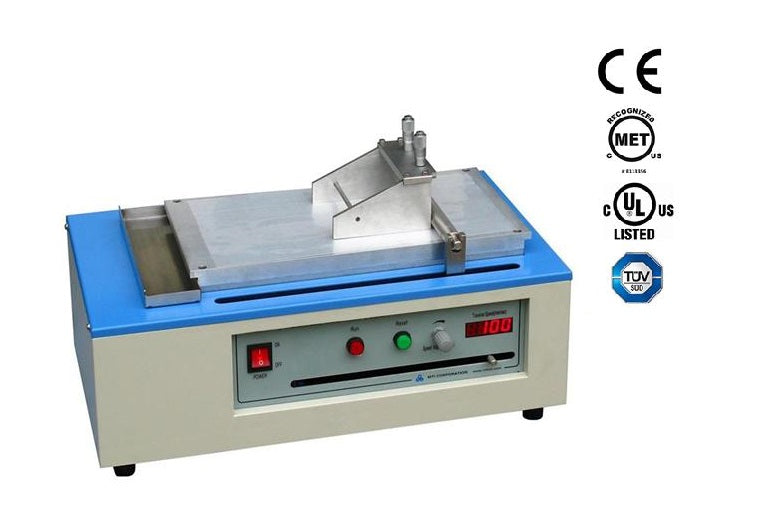

MSK-AFA-I is a CE /UL/CSA standard automatic tape casting coater designed to produce films with consistent thickness by using micrometer adjustable applicators or fixed thickness applicators. It has a unique driving system to produce smooth coating on all types of materials. The flat vacuum chuck is built in to hold substrate sheet in place which is useful when coating on thin substrate and making uniform tape casting. One micrometer adjustable applicator is included for immediate use. This machine can be used for research on ceramic tape casting and Li-Ion battery electrode coating. (Updated to UL Ready Version from 10/19/2015)

SPECIFICATIONS:
Traverse Speed
  • 0 - 100 mm/sec variable
  • Accuracy: 10mm/sec
Stroke Length 10 - 250 mm adjustable by using Adjustable Position Switch
Max. Coating Dimensions 180mm(W) x 250mm(L)
Power
  • In-put: 110V AC - 220V AC auto- switch power supply with UL/CSA/ TUV/ CE certified
  • 50/60Hz, Single Phase, 50W max
  • Out-put:   24V DC , 2.5A max
Vacuum Platform
  • Aluminum alloy flat plate with built in vacuum chuck
  • Vacuum chuck Dimensions: 370mm(L) x 200mm(W)
  • Vacuum control power switch is located in the front panel, and power plug ( female ) built in the back of the machine to connect an optional vacuum pump.
  • The pump connector is compression type 8mm O.D tube fitting which is located in the back panel (see pic below).
    An 8mm Dia. x 4ft polyurethane tube is included.
Film Applicator
  • One 100 mm width Micrometer Adjustable Film Applicator is included, with adjustable thickness from 0.01 - 3.5 mm
  • For coating film less than 10 microns, please order fixed thickness coating bar ( click Pic left-2 below )
  • Traverse Pusher and waste plate ( for extra slurry ) are included for pushing the Film Applicator to ensure constant speed coating (see pic below-middle ).
              ( pls click this picture to order other size  doctor blade  )
Compliance
  • CE Certificate
  • All electric components ( >24V) are UL / MET / CSA certified
  • The Product is ready to pass TUV(UL61010)  or CSA certification at extra cost.  please click marks below to learn details )

Vacuum Pump ( Optional )
  • Vacuum pump is NOT included.  You may use your own pump or  select a pump in the optional bar.  Click the model  below to view detail specs:
  • 120L/min Oilless Vacuum Pump CE certificate ONLY
  • Compact Oil-Free Diaphragm Pump Made in Germany,  CE & TUV certificate
  •
Warranty One Year limited warranty with lifetime support
Operation Manual & Video





Application Notes
  • Please clicks the first two pictures below to see coated cathode and anode for Li-Ion battery. Please click here to see how to make electrode coating.
  • You need a vacuum mixer to remove air bubbles inside slurry and to make uniform coatings (click the third picture below to order ).  You may need a Slurry Viscosity Tester to make coatings consistent (click the fourth picture below for details)
  • You may need a vacuum oven to dry the films and remove binder after coating
  • Rolling pressing is necessary to ensure good density and adhesion of electrode materials to the current collector substrate after coating. Please select a rolling press from here.
  • It is recommended to operate the coater under the fume hood, please click pic.3 for product details.
  • For using other Film Applicator different from standard package, customized Traverse Pusher required to ensure the constant coating speed.(Click Pic 9 to learn)
                                                          Pic.1             Pic.2                      Pic.3                Pic.4                  Pic.5              Pic.6                  Pic.7                      Pic.8                   Pic.9
Product Dimensions 550mm(L) x  330mm(W)  x 150mm(H)
Net Weight 45 kg ( 96 lbs)

STANDARD PACKAGE:
Item Description Qty
1 Automatic Film Coater 1
2 Traverse Pusher 1
3 100 mm Micrometer Adjustable Film Applicator - EQ-Se-KTQ-100 1
4 Power Cable (Note: 220V AC Power plug is not included. Please click here to order) 1
5 Waste Plate 1
7 Vacuum Hose (8mm Dia. x 4ft polyurethane tube) 1
