Oscillators Quartz Crystal Holder with water cooling tube - TM106-STD

€2.028,06

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Oscillators Quartz Crystal Holder with water cooling tube - TM106-STD

MTI

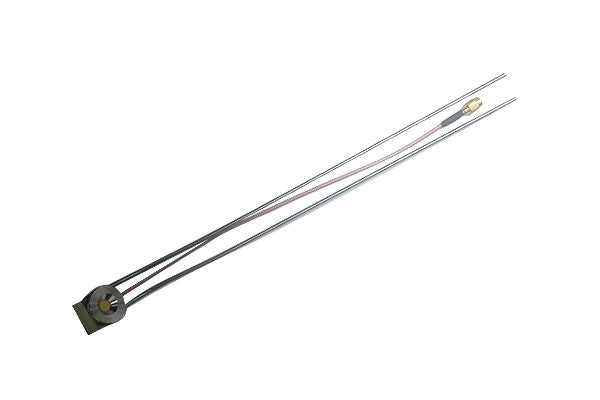

It Contains three parts inside the vacuum system, Quartz Crystal sensor holder, Quartz Crystal signal cable to the feedthrough, and water cooling tube.

SPECIFICATIONS:
Option Part to build

Thin Film Thickness system
  • Thin Film Thickness / Deposition System
  • Options Part 1: Holding  Gold oscillators crystal (Not included)

Crystal Frequency: 6 MHz with resolution of 0.03HZ
  • Options Part 2:  6? BNC-J3 Female to SMA-J3 Female Cable

  • Options Part 3: CF40 (2.75" ConFlat) Style Feedthrough for TM106 Thickness Monitor

Replacement for
  • Connect to the control box
  • Oscillator box dimension: 96 x 45 x 18mm
  • Can directly connect to PC via USB connector to monitor the thickness

Compact High-Resolution Film Thickness Monitor, Controller, and Rack --- EQ-TM106
Production Dimension
  • 325 mm L x 25 mm W x 15 mm H
  Application Case
  •
    Warranty One year limited warranty with lifetime support



   Application Notes
  • Choosing the right crystal. Three electrode materials: Glod, Silver, Alloy.
  • Recommend gold crystals for most applications.
  • And alloy crystals are recommended for optical coating with dielectric materials and for semiconductor processes with high-stress materials.
  • It may be worth testing the two types of crystals when commencing new thin film processes.
