MTI  |  SKU: ZeroSi32D20C1cavity10D

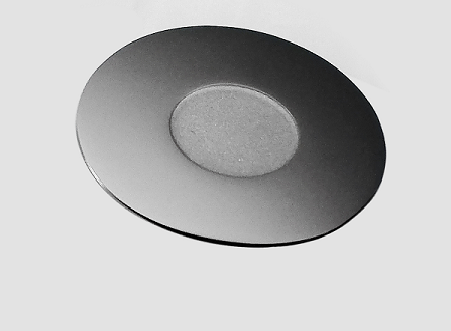

Zero Diffraction Plate with Cavity for XRD: 32 Dia x2.0 t mm w/ Cavity 10 IDx0.2 mm, Si Crystal

€282,76

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Zero Diffraction Plate with Cavity for XRD: 32 Dia x2.0 t mm w/ Cavity 10 IDx0.2 mm, Si Crystal

MTI

Specifications:
  • Crystal: Si, P-type B-doped
  • Resistivity:10-15 ohm.cm
  • Size: 32 mm diameter x 2.0 mm Thickness,with a cavity in the center of the plate with 10mm dia. and 0.2 mm depth
  • Zero diffraction plate is made of Silicon cut at special orientation
  • Perfect for sample holder of powder XRD, which has no background noise from 20 to 120 degree (2? angle Cu Ka X-Ray)
  • Fit with XRD of Siemens, Scintag, Rugaku and many more.
  •  Warning:  X-ray beam shall be 5 mm dia or less and hit in the center of sample when you use cacity zero diffraction plate ! Otherwise  the edge may result in a peak.
  • Typical XRD of Si zero plate
