Automatic Layer by Layer Stacking Machine for Pouch Cell up to 200 Lx150W (mm) - MSK-111A-E

MTI

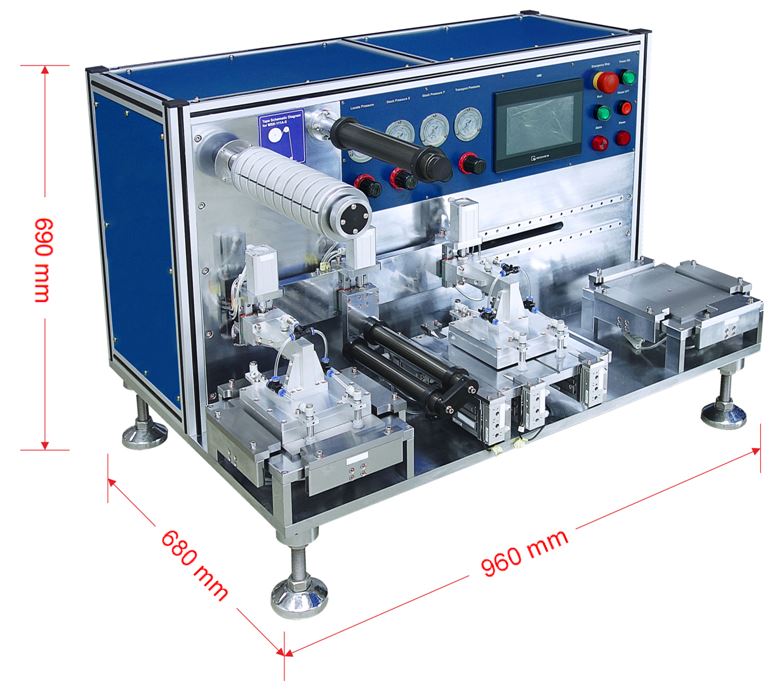

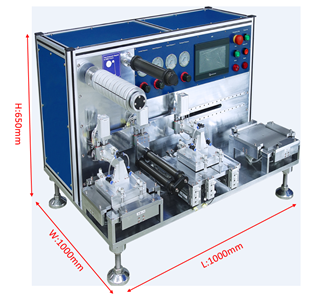

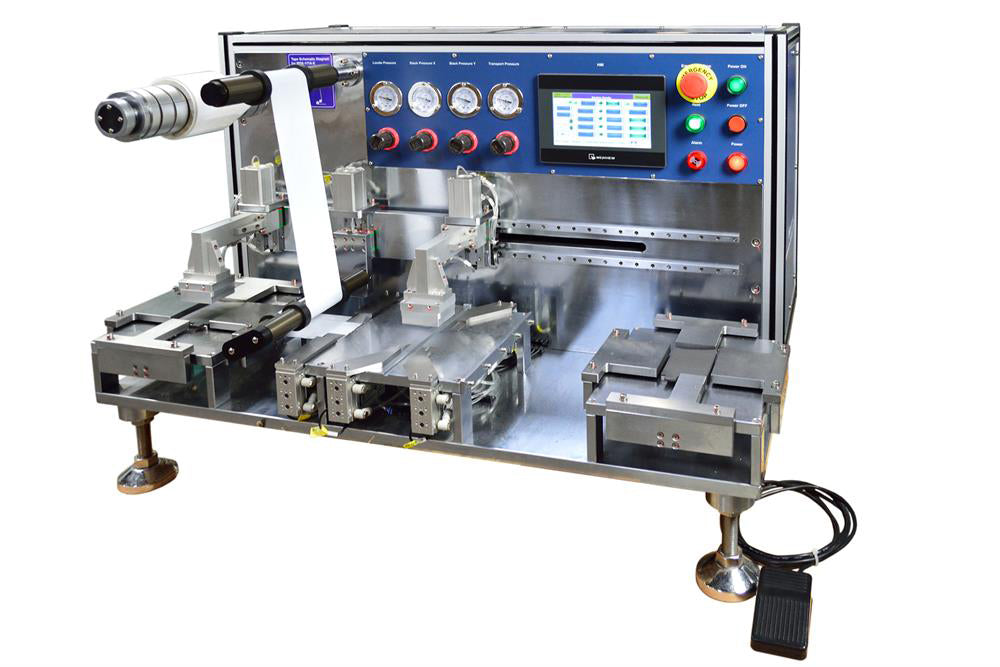

MSK-111A-E is a high-accuracy automatic stacking machine with many advanced features to ensure stable, repeatable, and precise electrode stacking. In its "Z" fashion stacking method, Anode and Cathode electrodes are alternatively stacked with the separator film in between.
Advanced Features:

PLC Touch Screen Control allows easy condition setting
Continuous "Z" fashion stacking with a separator
Auto electrode pick-up & stacking via vacuum suction manipulator
Adjustable mechanical fixture for accurate electrode positioning
Unreeling rotors for separator film feeding
Auto-tension control for separator film delivery
One set of 80x50mm stocking die fixtures is included for immediate use.

SPECIFICATIONS:

Working Voltage	208-240VAC, 50/60Hz, single phase. AC 110V version is available via a 2000W transformer.
Power	1KW
Stacking Slot Size	*Max. Size: 200 mm L x 150 mm W (customer should inform us the stacking die size).* *Maximum thickness for the stacking electrodes is 15 mm* *Other small stacking slot sizes are avilble upon request*
Stackable Layers	Up to 500 layers
Stacking Speed	Up to 5 layers/min
Max. Electrode Thickness	Piled up thickness < 15 mm
Aligning Accuracy	±0.5 mm for stacked electrodes
Acceptable Separator Roll Size	I.D>3'' (76mm) O.D<9.8'' (250mm)
Stacking Fixture	One set of 80 x 50mm stacking die fixtures is included for immediate use. If you need different size electrode stacking, please inform us before order. We will make it for you at an extra cost. Allowable customization size: Max. 200mm x 200mm; Min. 80 mm x 50 mm Each size cell needs one mold
Vacuum Pump	An Oilless Vacuum pump (28L/min, 140W) is built-in to enable the vacuum suction function of the electrode pick-up/stacking manipulator.
Suggested Air Pressure	0.5 - 0.8 MPa (Air compressor is not included in the standard package. Please click here to order) Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator. pic1pic2
Compliance	CE Certified NRTL certificate is available upon request at an extra cost
Application Notes	Note: please confirm electrode sheet size before order ( each mold only fit with one size electrode ) To get the special shape of the electrode for stacking, you may need MSK-180-AM Auto electrode die cutting machine, and use MSK-120 Pouch Forming Machine to form the pouch. This machine can be put in a glovebox and operated in Ar gas
