MTI  |  SKU: CA4550

Alumina Crucible: High Purity 4.5 mm Dia. x 5 mm H Cylindrical with Lid for Thermal Analysis (PE) - CA4550

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Alumina Crucible: High Purity 4.5 mm Dia. x 5 mm H Cylindrical with Lid for Thermal Analysis (PE) - CA4550

MTI

Features:

  • One high-purity Alumina cylindrical crucible with a covering lid for chemical calcining, metal casting, and ceramic sample preparation.

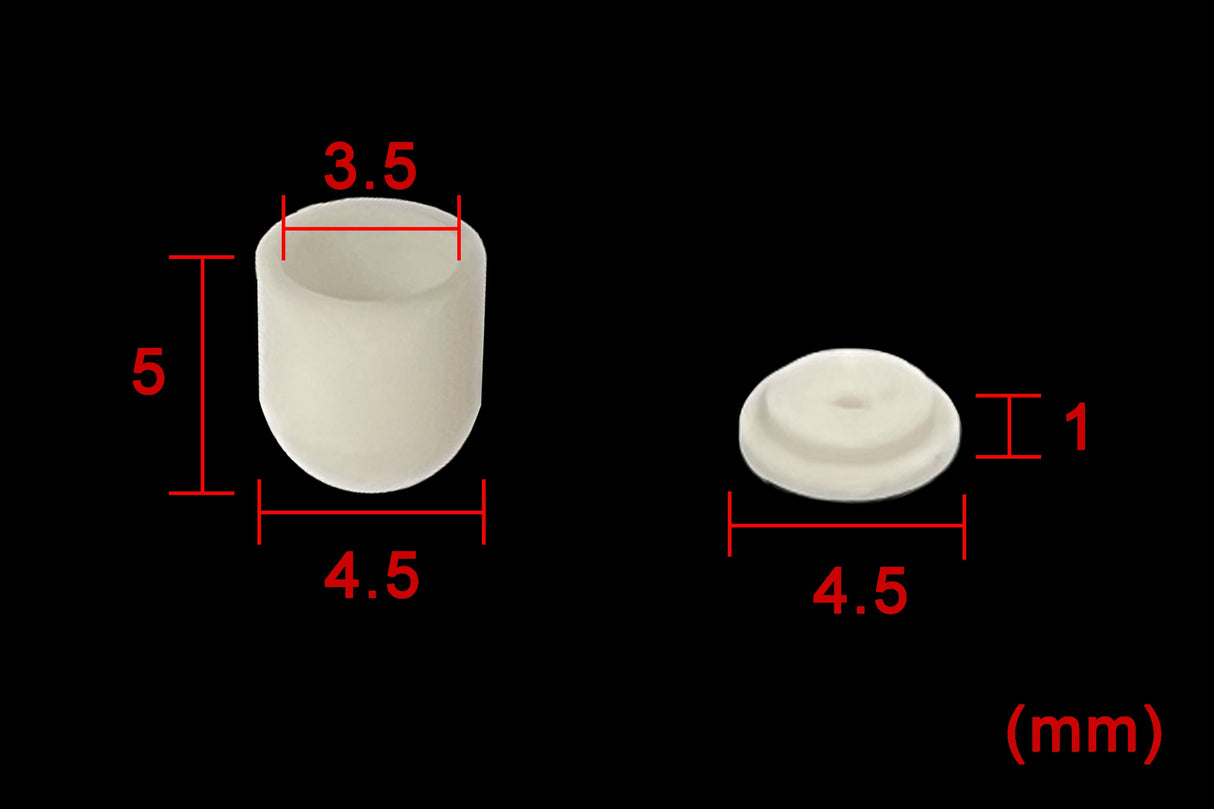

  • Dimension:
    • Cursible: 4.5 mm OD; 3.5 mm ID; 5 mm Height
    • Lid: 4.5 mm Diameter; 1 mm Height.
    • Please click the pic below for more details.
  • Shape: Cylindrical, as the picture shown
  • Purity: Al2O3 > 99.5% ; Fe2O3 < 0.01%
  • 100% impervious
  • Density: > 3.8 g /cm3
  • Capacity: ~ 0.03 ml
  • Max. working temperature: 1750°C or 3180°F
  • Please notice that there is a small hole in the lid.



  • Note: Never heat and cool faster than 5°C/min. Otherwise, the crucible may crack.
  • Alumina crucibles are made by casting method, which does not have precise dimensions.



Alumina Crucibles / Boats

Boron Nitride Crucibles

Graphite Crucible
Graphite Crucible

Quartz Crucibles

Quartzwares (Crucibles, Boats, and Rods)

Y2O3 Crucible

Zirconia Crucibles / Boat

Molybdenum Crucible

Thermoelectric Testing Fixtures
  • Inspect your delivery:
    Please check package for damages before accepting delivery.
    Should damages found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.
    No Warranty:
    Kindly note this item is a consumable part, and not covered by warranty. Make sure to inspect for defect(s) thoroughly before use.
